XDIAG PRO FULL SmartLink C Diagnostic Set

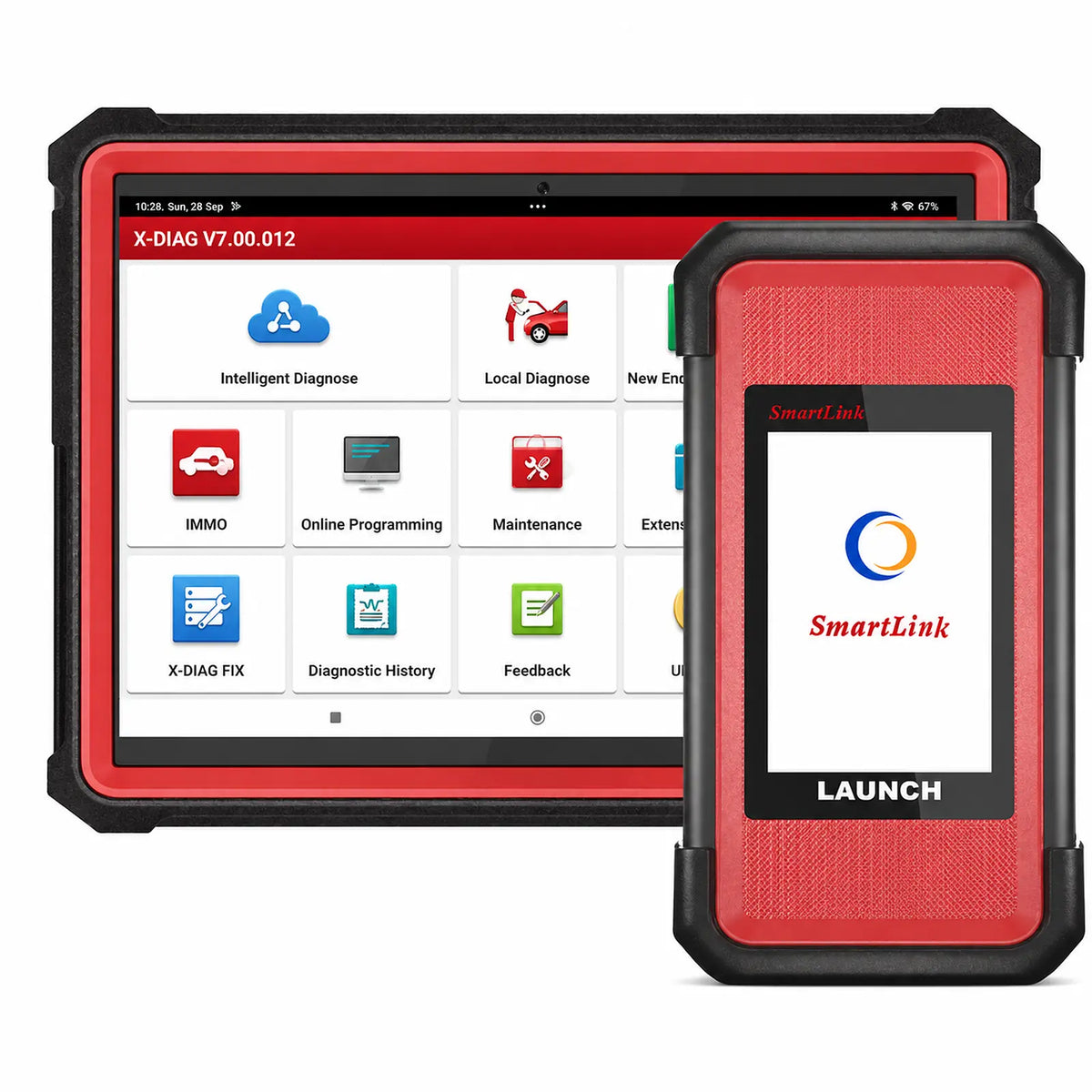

The Xdiag PRO S SmartLink C 2.0 Diagnostic Set is a complete professional solution for passenger and heavy-duty vehicle diagnostics. The set includes a durable 10-inch Android tablet (3GB/128GB, long-lasting battery, protective case) and the original Launch SmartLink C 2.0 diagnostic interface, fully tested and optimized for official Xdiag software. Comes with a pre-activated license for Passenger Cars & Trucks + EV + IMMO.

Description

XDIAG PRO S SmartLink C 2.0 Diagnostic Set – Professional Heavy Duty & Passenger Vehicle Scanner

The XDIAG PRO S SmartLink C 2.0 Diagnostic Set is a flagship professional diagnostic solution designed for workshops requiring complete passenger car and heavy-duty vehicle coverage with future-proof diagnostic protocols.

Comes with the Launch X-431 SmartLink C 2.0 professional diagnostic interface and a
10-inch Android tablet (3GB RAM / 128GB storage), fully flashed and optimized for Xdiag software.

KEY FEATURES OF SMARTLINK C 2.0

- Original Launch SmartLink C 2.0 hardware – professional heavy-duty diagnostic interface.
- Linux-based system with Cortex-A7 + Cortex-M7 dual processors.
- Supports Bluetooth, Wi-Fi and USB communication.
- Faster transmission speed and improved communication stability.
- Supports passenger vehicles, commercial vehicles and new energy vehicles.
- Professional-grade bidirectional control & ECU adaptations.
- Advanced Service Functions (40+) – Injector coding, BMS reset, TPMS, immobilizer, ECU coding.
- Supports super remote diagnosis functionality.
- Direct 24V heavy truck diagnostics without external voltage converter.

TABLET SPECIFICATIONS

- 10-Inch HD screen.
- 3GB RAM / 128GB storage.
- Flashed and preconfigured for Xdiag.
- Rugged protective case.
- Extended battery for workshop use.

SUPPORTED DIAGNOSTIC PROTOCOLS

- ISO9141/KWP2000 – Coverage for older European & Asian vehicles.
- J1850 VPW/PWM – Ford, GM, Chrysler.
- CAN – Universal since 2008.
- UDS – Used in advanced systems by VW, Mercedes, BMW.
- DOIP – Ethernet diagnostics for Jaguar, Land Rover, Volvo, Mercedes.
- CAN-FD – Latest GM, Opel, VW, Hyundai, Kia and modern vehicle platforms.

HEAVY-DUTY ENGINE SUPPORT

Supports diagnostics for major heavy-duty engine manufacturers including:

- Cummins
- Bosch
- Weichai
- Shangchai
- Yuchai
- Xichai
- Chaochai
- Yangchai
- Quanchai
- and many more.

VEHICLE COVERAGE

- Passenger Cars & EVs – VW, Audi, BMW, Mercedes-Benz, Peugeot, Fiat, Volvo, Toyota, Honda, Hyundai, Kia, Ford, GM, Chrysler, BYD, Geely …
- IMMO & Key – Advanced immobilizer and key programming functions.
- Heavy Trucks – MAN, Scania, Mercedes Trucks, Volvo Trucks, Iveco, DAF …
- Agricultural Machinery – John Deere, Fendt, Massey Ferguson, New Holland …
- Construction Machinery – Caterpillar, Komatsu, Hitachi, JCB …
- Buses, trailers and marine diagnostics supported.

PRE-ACTIVATED XDIAG LICENSE

- Included: Passenger Cars + Electric Vehicles + IMMO
- Heavy Trucks, Tractors, Motorcycles, Construction Machinery

WHY CHOOSE XDIAG PRO S SMARTLINK C 2.0?

- Official Xdiag license included – ready to use out of the box.
- Upgraded from older HDIII systems with more powerful hardware.
- Professional-grade diagnostics with ECU coding, bidirectional tests and advanced service functions.
- Faster and more stable communication compared to standard Bluetooth OBD devices.
- Supports modern CAN-FD & DOIP vehicle platforms.
- Integrated passenger + commercial vehicle diagnostic solution.
- Constant updates for new vehicles and functions.
- Tested and verified before shipping – reliability guaranteed.

PACKAGE CONTENTS

- 10-inch Android tablet (3GB / 128GB)
- Launch SmartLink C 2.0 professional diagnostic interface
- Pre-activated Xdiag license (Passenger Cars & Trucks + EV + IMMO)
- USB charger and cable
