Xdiag MAX Diagnostic Set ThinkDiag 2

Xdiag Max Diagnostic Set ThinkDiag 2 – Professional diagnostic kit with ThinkDiag 2 Bluetooth OBD2 connector, 10-inch tablet, and Xdiag license for Passenger Cars + EV + IMMO. Supports advanced service functions (40+), ECU coding, bi-directional tests, and optional expansion to Trucks, Tractors, Motorcycles, and Heavy Equipment.

Description

Introducing the Xdiag MAX Diagnostic Set ThinkDiag 2 – a professional automotive diagnostic kit created for workshops, mechanics, and advanced users who expect reliability, wide coverage, and advanced functions at an affordable price.

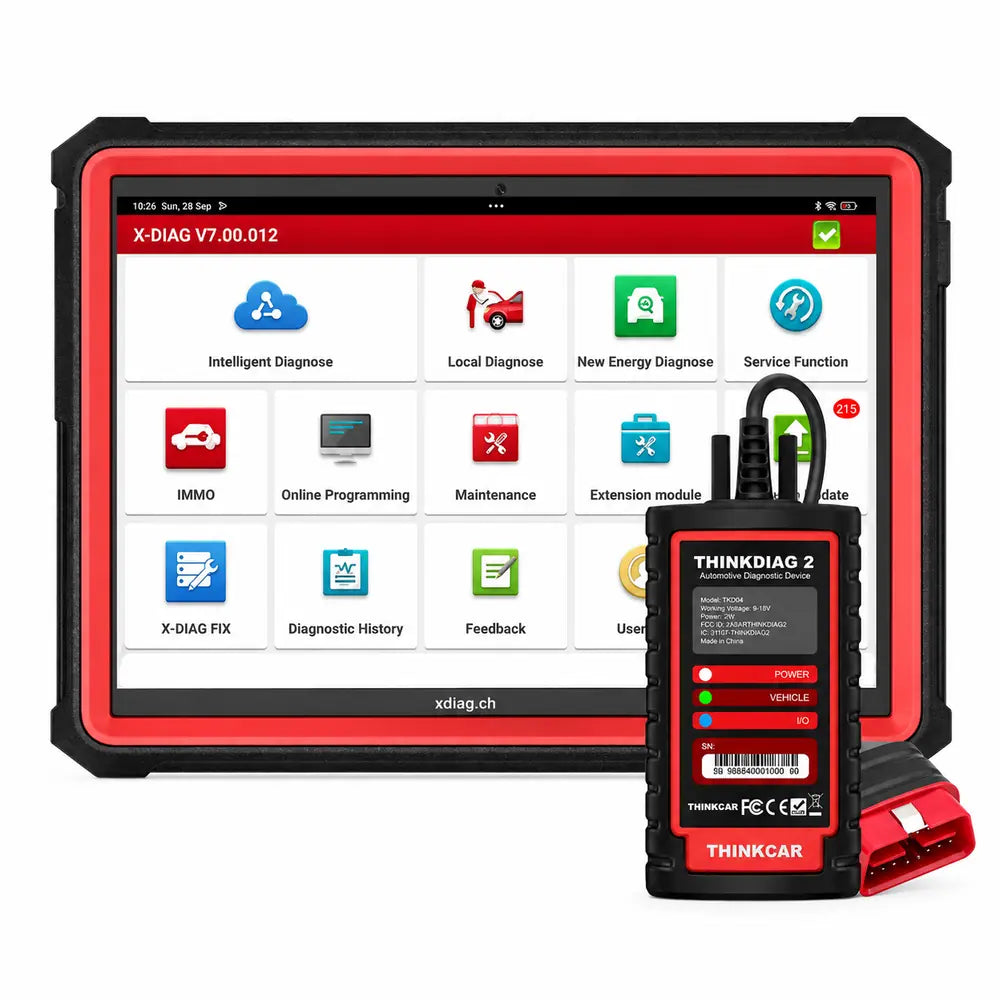

This set includes the ThinkDiag 2 OBD2 Bluetooth connector together with a 10-inch Android tablet (3GB RAM / 128GB storage) in a durable protective case. Fully preconfigured and tested on the Xdiag platform, it is ready to deliver professional-grade diagnostics right out of the box.

Key Features of the ThinkDiag 2 Connector

- Professional OBD2 Bluetooth Adapter – Fast and stable wireless connection.
- Protocol Support – Supports ISO9141, KWP2000, J1850 VPW, J1850 PWM, CAN, UDS, DOIP, CAN-FD.
- Service Functions (40+) – Oil reset, DPF regeneration, injector coding, key programming, TPMS, BMS, SAS calibration, and more.
- ECU Functions – Bi-directional testing, ECU coding, Auto VIN, health reports.
- Rugged ABS+PC+TPU housing.
- OBD2 Extension Cable (0.65 m) included.

Tablet Specifications

- 10-Inch Display – Clear and bright.
- 3GB RAM / 128GB Storage.
- Optimized for Xdiag.
- Protective Case.
- Long battery life.

Supported Diagnostic Protocols

- ISO9141 – Older Asian/European cars.
- KWP2000 – Used by VW, Audi, BMW, Mercedes, Fiat.
- J1850 VPW/PWM – For American cars (Ford, GM, Chrysler).
- CAN – Standard for most cars post-2008.
- UDS – Advanced coding & ECU programming (VW, BMW, Mercedes).
- DOIP – Ethernet diagnostics for new Mercedes, Volvo, JLR.
- CAN-FD – Latest GM (2020+), VW MQB platform, Opel.

Vehicle Coverage

- Passenger Cars & EV/Hybrids – VW, Audi, BMW, Mercedes, Peugeot, Fiat, Volvo, Ford, GM, Chrysler, Toyota, Honda, Nissan, Hyundai, Kia, BYD, Geely, Changan, Great Wall ….
- IMMO & Key Functions – Advanced immobilizer and key programming.

- With an optional Trucks license, coverage expands to:

      - Trucks: MAN, Scania, Mercedes-Benz Trucks, Volvo Trucks, Iveco, DAF, Freightliner, International….

      - Agricultural Machinery: John Deere, Massey Ferguson, New Holland, Fendt ….

      - Construction Equipment: Caterpillar, Komatsu, JCB, Hitachi ….

Package Contents

- 10″ Android diagnostic tablet (3GB RAM / 128 GB storage)
- Shock-resistant protective case (pre-installed)
- ThinkDiag 2 Bluetooth OBD2 connector
- Xdiag license: Passenger Cars + EV + IMMO (12 months updates)
- USB charger and cable

Optional Add-Ons

 - Heavy-Duty (Trucks/Buses), Tractors, Motorcycles, Construction licenses (sold separately)
 - For 24V vehicles (trucks/machinery) a 24V → 12V power converter is required to protect the OBD interface (works at 9–18V)
